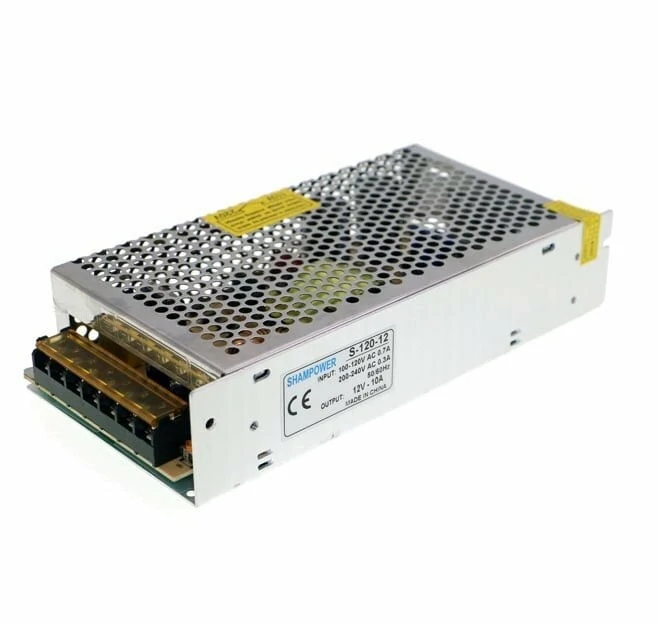

12V 10A Internal Powersupply

• Universal AC input / Full range. The input voltage: AC 100V/240V, the output current: 10Amps
• Smart device surge protection for Shortage, Overload, Over Voltage
• Dual input voltage: AC 110V/220V. There is a switch, choose the proper voltage before use
• 100% full load burn-in test.Cooling by free air convection.
• There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.

Product Features:-

1. Auto on/off cooling fan
2. High efficiency
3. Low temperature
4. LED indicator for power on
5. Over Load and Short Circuit Protection
6. Over Voltage Protection
7. Full load burn-in test
8. Great switching power supply for home appliances
9. Universal AC input/full range, cooling by automatic on/off cooling fan
10. A new style Switching Power Supply which can keep the voltage stability
11. LED Switching Power Supply, high quality material, durable and safety in use

Specifications :-

• Input: AC110V/220V
• Output: DC 12V 10A
• Output Power: 120W
• Frequency: 50/60Hz
• Screw Terminal Number: 7
• Fix Screw Hole Diameter: 2.5mm(0.1 inch)

Connection:-

• L: FireWire
• N: zero line
• G: ground wire
• – V: load negative
• + V: load positive
